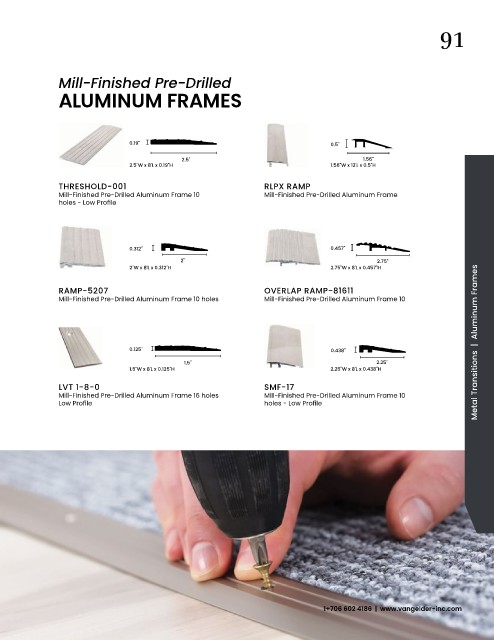

Mill-Finished Pre-Drilled

ALUMINUM FRAMES

0.19" 0.5"
2.5" 1.56"
2.5"W x 8'L x 0.19"H 1.56"W x 12'L x 0.5"H

THRESHOLD-001 RLPX RAMP
Mill-Finished Pre-Drilled Aluminum Frame 10 Mill-Finished Pre-Drilled Aluminum Frame
holes - Low Profile

0.312" 0.457"
2" 2.75"
2"W x 8'L x 0.312"H 2.75"W x 8'L x 0.457"H

RAMP-5207 OVERLAP RAMP-81611
Mill-Finished Pre-Drilled Aluminum Frame 10 holes Mill-Finished Pre-Drilled Aluminum Frame 10

0.125" 0.438" Metal Transitions | Aluminum Frames
1.5" 2.25"
1.5"W x 8'L x 0.125"H 2.25"W x 8'L x 0.438"H

LVT 1-8-0 SMF-17
Mill-Finished Pre-Drilled Aluminum Frame 16 holes Mill-Finished Pre-Drilled Aluminum Frame 10
Low Profile holes - Low Profile

1+706 602 4186 | www.vangelder-inc.com
