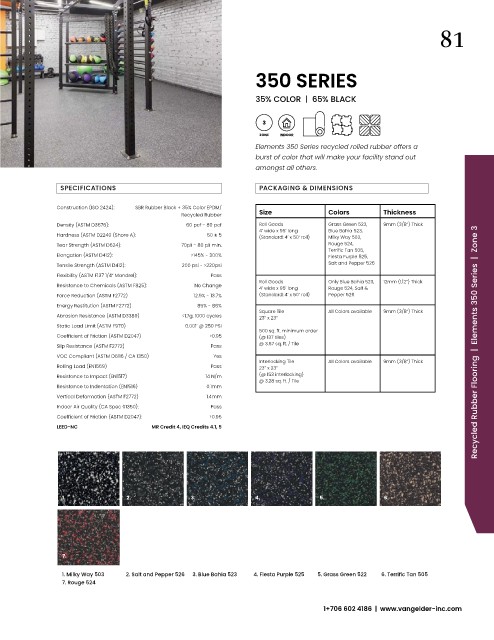

350 SERIES

35% COLOR | 65% BLACK

INDOOR
Elements 350 Series recycled rolled rubber offers a
burst of color that will make your facility stand out
amongst all others.

SPECIFICATIONS PACKAGING & DIMENSIONS

Construction (ISO 2424): SBR Rubber Black + 35% Color EPDM/
Size Colors Thickness
Recycled Rubber
Density (ASTM D3676): 60 pcf - 80 pcf Roll Goods Grass Green 522, 9mm (3/8”) Thick
4’ wide x 95’ long Blue Bahia 523,
Hardness (ASTM D2240 (Shore A): 60 ± 5
(Standard: 4’ x 50’ roll) Milky Way 503,
Tear Strength (ASTM D624): 70pli - 80 pli min. Rouge 524,
Terrific Tan 505,
Elongation (ASTM D412): >145% - 300% Fiesta Purple 525,
Tensile Strength (ASTM D412): 200 psi - >220psi Salt and Pepper 526
Flexibility (ASTM F137 1/4” Mandrel): Pass
Roll Goods Only Blue Bahia 523, 12mm (1/2”) Thick
Resistance to Chemicals (ASTM F825): No Change
4’ wide x 95’ long Rouge 524, Salt &
Force Reduction (ASTM F2772) 12.9% - 13.7% (Standard: 4’ x 50’ roll) Pepper 526
Energy Restitution (ASTM F2772) 85% - 86%
Square Tile All Colors available 9mm (3/8”) Thick
Abrasion Resistance (ASTM D3389) <1.7g. 1000 cycles
23” x 23”
Static Load Limit (ASTM F970) 0.001’ @ 250 PSI
500 sq. ft. minimum order
Coefficient of Friction (ASTM D2047) >0.95 (@ 137 tiles)
@ 3.67 sq. ft. / Tile Recycled Rubber Flooring | Elements 350 Series | Zone 3
Slip Resistance (ASTM F2772) Pass
VOC Compliant (ASTM D6116 / CA 1350) Yes
Interlocking Tile All Colors available 9mm (3/8”) Thick
Rolling Load (EN1569) Pass
23” x 23”
(@ 153 interlocking)
Resistance to Impact (EN1517) 14 N/m
@ 3.28 sq. ft. / Tile
Resistance to Indentation (EN1516) 0.1mm
Vertical Deformation (ASTM F2772) 1.4mm
Indoor Air Quality (CA Spec 01350): Pass
Coefficient of Friction (ASTM D2047): >0.96
LEED-NC MR Credit 4, IEQ Credits 4.1, 5

1. 2. 3. 4. 5. 6.

7.

1. Milky Way 503 2. Salt and Pepper 526 3. Blue Bahia 523 4. Fiesta Purple 525 5. Grass Green 522 6. Terrific Tan 505
7. Rouge 524
