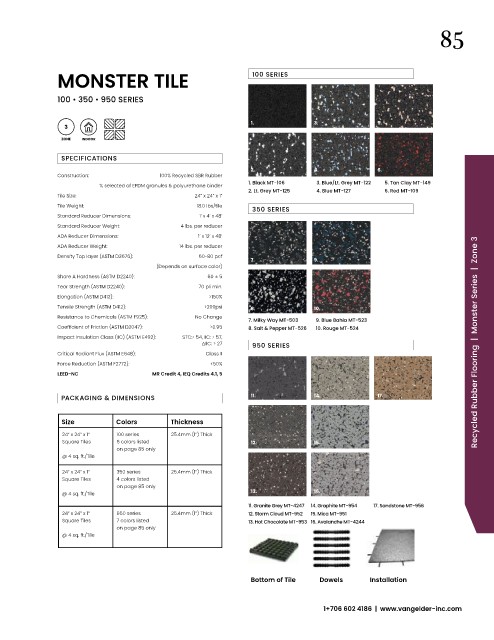

Page 85 - vG_2024Catalogue_sm

84 85

100 SERIES
MONSTER TILE

100 • 350 • 950 SERIES

1. 3. 5.
INDOOR

SPECIFICATIONS
2. 4. 6.
Construction: 100% Recycled SBR Rubber
1. Black MT-106 3. Blue/Lt. Grey MT-122 5. Tan Clay MT-149
% selected of EPDM granules & polyurethane binder
2. Lt. Grey MT-125 4. Blue MT-127 6. Red MT-109
Tile Size: 24” x 24” x 1”
Tile Weight: 18.0 lbs/tile
350 SERIES
Standard Reducer Dimensions: 1’ x 4’ x 48’
Standard Reducer Weight: 4 lbs. per reducer
ADA Reducer Dimensions: 1’ x 12’ x 48’
ADA Reducer Weight: 14 lbs. per reducer
Density Top layer (ASTM D3676): 60-80 pcf
7. 9.
(Depends on surface color)
Shore A Hardness (ASTM D2240): 60 ± 5
Tear Strength (ASTM D2240): 70 pli min.
Elongation (ASTM D412): >150%
Tensile Strength (ASTM D412): >200psi 8. 10.
Resistance to Chemicals (ASTM F925): No Change
7. Milky Way MT-503 9. Blue Bahia MT-523
Coefficient of Friction (ASTM D2047): >0.95 8. Salt & Pepper MT-526 10. Rouge MT-524
Impact Insulation Class (IIC) (ASTM E492): STC:> 54, IIC: > 57,
ΔIIC: > 27 Recycled Rubber Flooring | Monster Series | Zone 3
950 SERIES
Critical Radiant Flux (ASTM E648): Class II
Force Reduction (ASTM F2772): <50%
LEED-NC MR Credit 4, IEQ Credits 4.1, 5

PACKAGING & DIMENSIONS 11. 14. 17.

Size Colors Thickness
24” x 24” x 1” 100 series 25.4mm (1”) Thick
Square Tiles 6 colors listed 12. 15.
on page 85 only
@ 4 sq. ft./Tile

24” x 24” x 1” 350 series 25.4mm (1”) Thick
Square Tiles 4 colors listed
on page 85 only
13. 16.
@ 4 sq. ft./Tile
11. Granite Grey MT-4247 14. Graphite MT-954 17. Sandstone MT-956
24” x 24” x 1” 950 series 25.4mm (1”) Thick 12. Storm Cloud MT-952 15. Mica MT-951
Square Tiles 7 colors listed 13. Hot Chocolate MT-953 16. Avalanche MT-4244
on page 85 only
@ 4 sq. ft./Tile

Bottom of Tile Dowels Installation

1+706 602 4186 | www.vangelder-inc.com
