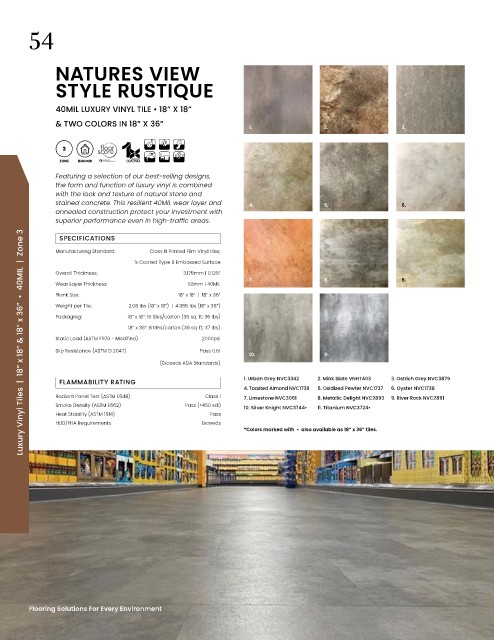

NATURES VIEW

STYLE RUSTIQUE

40MIL LUXURY VINYL TILE • 18” X 18”

& TWO COLORS IN 18” X 36”
1. 2. 3.

INDOOR
Featuring a selection of our best-selling designs,
the form and function of luxury vinyl is combined
with the look and texture of natural stone and
stained concrete. This resilient 40MIL wear layer and 4. 5. 6.
annealed construction protect your investment with
superior performance even in high-traffic areas.
Luxury Vinyl Tiles | 18” x 18” & 18” x 36” • 40MIL | Zone 3
SPECIFICATIONS
Manufacturing Standard: Class III Printed Film Vinyl tiles;
1x Coated Type B Embossed Surface
Overall Thickness: 3.175mm | 0.125”
7. 8. 9.
Wear Layer Thickness: 1.0mm | 40MIL
Plank Size: 18” x 18” | 18” x 36”
Weight per Tile: 2.08 lbs (18” x 18”) | 4.365 lbs (18” x 36”)
Packaging: 18” x 18”: 16 tiles/carton (36 sq. ft; 36 lbs)
18” x 36”: 8 tiles/carton (36 sq. ft; 37 lbs)
Static Load (ASTM F970 - Modified) 2000psi
Slip Resistance (ASTM D 2047) Pass 0.61
10. 11.
(Exceeds ADA Standards)
1. Urban Grey NVC3342 2. Mink Slate VNHT403 3. Ostrich Grey NVC3879
FLAMMABILITY RATING
4. Toasted Almond NVC1739 5. Oxidized Pewter NVC1737 6. Oyster NVC1738
Radiant Panel Test (ASTM E648) Class 1 7. Limestone NVC3061 8. Metallic Delight NVC2893 9. River Rock NVC2891
Smoke Density (ASTM E662) Pass (<450 sdi)
10. Silver Knight NVC3744• 11. Titanium NVC3724•
Heat Stability (ASTM 1514) Pass
HUD/FHA Requirements Exceeds
*Colors marked with • also available as 18” x 36” tiles.
