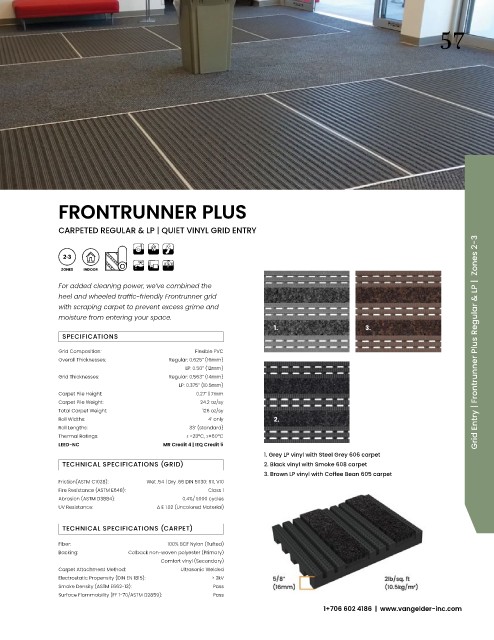

Page 57 - vG_2024Catalogue_sm

56 57

FRONTRUNNER PLUS

CARPETED REGULAR & LP | QUIET VINYL GRID ENTRY

INDOOR

For added cleaning power, we’ve combined the
heel and wheeled traffic-friendly Frontrunner grid
with scraping carpet to prevent excess grime and
moisture from entering your space.
1. 3.
SPECIFICATIONS Grid Entry | Frontrunner Plus Regular & LP | Zones 2-3
Grid Composition: Flexible PVC
Overall Thicknesses: Regular: 0.625” (16mm)
LP: 0.50” (12mm)
Grid Thicknesses: Regular: 0.563” (14mm)
LP: 0.375” (10.5mm)
Carpet Pile Height: 0.27” | 7mm
Carpet Pile Weight: 24.2 oz/sy
Total Carpet Weight: 126 oz/sy
Roll Widths: 4’ only 2.
Roll Lengths: 33’ (standard)
Thermal Ratings: ≥ -23ºC, ≤+60ºC
LEED-NC MR Credit 4 | IEQ Credit 5
1. Grey LP vinyl with Steel Grey 606 carpet
TECHNICAL SPECIFICATIONS (GRID) 2. Black vinyl with Smoke 608 carpet
3. Brown LP vinyl with Coffee Bean 605 carpet
Friction(ASTM C1028): Wet .54 | Dry .66 DIN 51130: R11, V10
Fire Resistance (ASTM E648): Class 1
Abrasion (ASTM D3884): 0.4%/ 1,000 cycles
UV Resistance: Δ E 1.02 (Uncolored Material)

TECHNICAL SPECIFICATIONS (CARPET)

Fiber: 100% BCF Nylon (Tufted)
Backing: Colback non-woven polyester (Primary)
Comfort vinyl (Secondary)
Carpet Attachment Method: Ultrasonic Welded
Electrostatic Propensity (DIN EN 1815): > 2kV
Smoke Density (ASTM E662-13): Pass
Surface Flammability (FF 1-70/ASTM D2859): Pass
1+706 602 4186 | www.vangelder-inc.com
