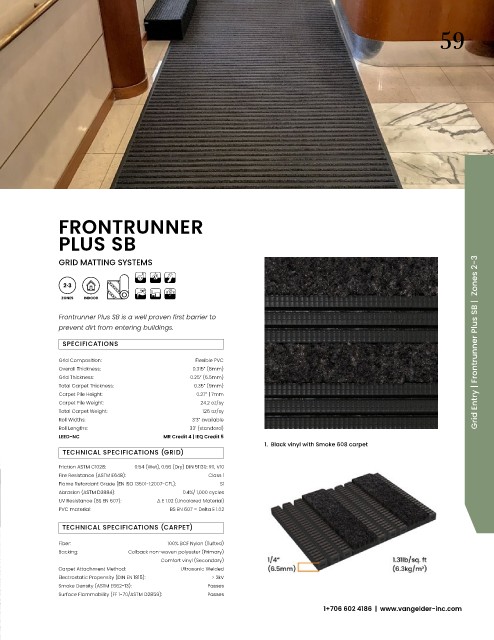

FRONTRUNNER

PLUS SB

GRID MATTING SYSTEMS

INDOOR

Frontrunner Plus SB is a well proven first barrier to
prevent dirt from entering buildings.

SPECIFICATIONS Grid Entry | Frontrunner Plus SB | Zones 2-3

Grid Composition: Flexible PVC
Overall Thickness: 0.315” (8mm)
Grid Thickness: 0.25” (6.5mm)
Total Carpet Thickness: 0.35” (9mm)
Carpet Pile Height: 0.27” | 7mm
Carpet Pile Weight: 24.2 oz/sy
Total Carpet Weight: 126 oz/sy
Roll Widths: 3’3” available
Roll Lengths: 33’ (standard)
LEED-NC MR Credit 4 | IEQ Credit 5
1. Black vinyl with Smoke 608 carpet
TECHNICAL SPECIFICATIONS (GRID)
Friction ASTM C1028: 0.54 (Wet), 0.66 (Dry) DIN 51130: R11, V10
Fire Resistance (ASTM E648): Class 1
Flame Retardant Grade (EN ISO 13501-1:2007-CFL): S1
Abrasion (ASTM D3884): 0.4%/ 1,000 cycles
UV Resistance (BS EN 607): Δ E 1.02 (Uncolored Material)
PVC material: BS EN 607 = Delta E 1.02

TECHNICAL SPECIFICATIONS (CARPET)

Fiber: 100% BCF Nylon (Tufted)
Backing: Colback non-woven polyester (Primary)
Comfort vinyl (Secondary)
Carpet Attachment Method: Ultrasonic Welded
Electrostatic Propensity (DIN EN 1815): > 2kV
Smoke Density (ASTM E662-13): Passes
Surface Flammability (FF 1-70/ASTM D2859): Passes
1+706 602 4186 | www.vangelder-inc.com
