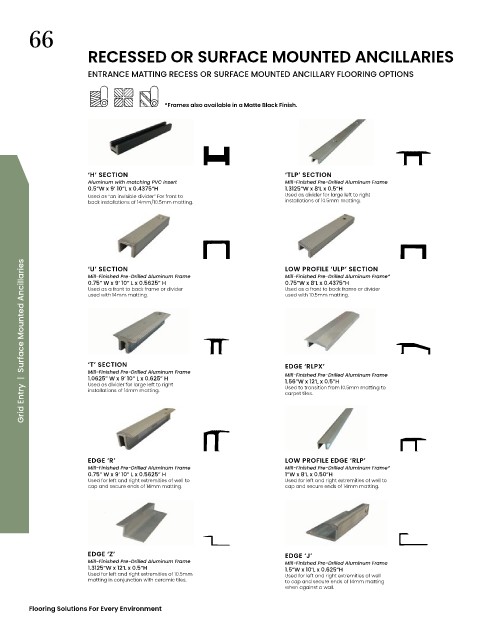

RECESSED OR SURFACE MOUNTED ANCILLARIES
ENTRANCE MATTING RECESS OR SURFACE MOUNTED ANCILLARY FLOORING OPTIONS
*Frames also available in a Matte Black Finish.
‘H’ SECTION ‘TLP’ SECTION
Aluminum with matching PVC insert Mill-Finished Pre-Drilled Aluminum Frame
0.5”W x 9’ 10”L x 0.4375”H 1.3125”W x 8’L x 0.5”H
Used as “an invisible divider” For front to Used as divider for large left to right
back installations of 14mm/10.5mm matting. installations of 10.5mm matting.
Grid Entry | Surface Mounted Ancillaries
‘U’ SECTION LOW PROFILE ‘ULP’ SECTION
Mill-Finished Pre-Drilled Aluminum Frame Mill-Finished Pre-Drilled Aluminum Frame*
0.75” W x 9’ 10” L x 0.5625” H 0.75”W x 8’L x 0.4375”H
Used as a front to back frame or divider Used as a front to back frame or divider
used with 14mm matting. used with 10.5mm matting.
‘T’ SECTION EDGE ‘RLPX’
Mill-Finished Pre-Drilled Aluminum Frame
Mill-Finished Pre-Drilled Aluminum Frame
1.0625” W x 9’ 10” L x 0.625” H 1.56”W x 12’L x 0.5”H
Used as divider for large left to right
installations of 14mm matting. Used to transition from 10.5mm matting to
carpet tiles.
EDGE ‘R’ LOW PROFILE EDGE ‘RLP’
Mill-Finished Pre-Drilled Aluminum Frame Mill-Finished Pre-Drilled Aluminum Frame*
0.75” W x 9’ 10” L x 0.5625” H 1”W x 8’L x 0.50”H
Used for left and right extremities of well to Used for left and right extremities of well to
cap and secure ends of 14mm matting. cap and secure ends of 14mm matting.
EDGE ‘Z’ EDGE ‘J’
Mill-Finished Pre-Drilled Aluminum Frame Mill-Finished Pre-Drilled Aluminum Frame
1.3125”W x 12’L x 0.5”H 1.5”W x 10’L x 0.625”H
Used for left and right extremities of 10.5mm
Used for left and right extremities of well
matting in conjunction with ceramic tiles. to cap and secure ends of 14mm matting
when against a wall.
Flooring Solutions For Every Environment
