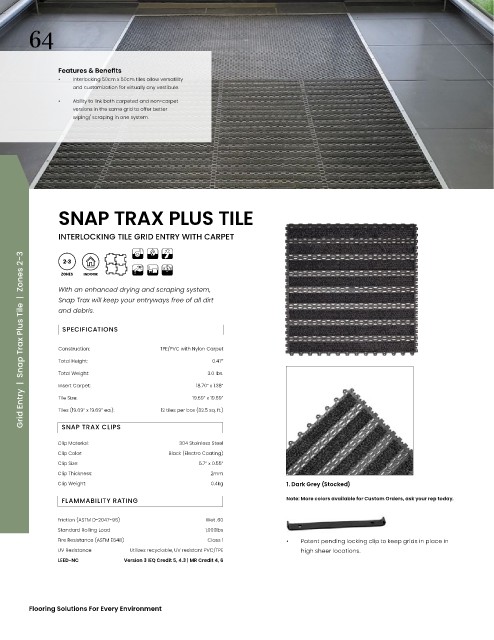

Page 64 - vG_2024Catalogue_sm

64 65

Features & Benefits
• Interlocking 50cm x 50cm tiles allow versatility
and customization for virtually any vestibule.
• Ability to link both carpeted and non-carpet
versions in the same grid to offer better
wiping/ scraping in one system.

SNAP TRAX PLUS TILE

INTERLOCKING TILE GRID ENTRY WITH CARPET

Grid Entry | Snap Trax Plus Tile | Zones 2-3

INDOOR
With an enhanced drying and scraping system,
Snap Trax will keep your entryways free of all dirt
and debris.

SPECIFICATIONS

Construction: TPE/PVC with Nylon Carpet
Total Height: 0.47”
Total Weight: 3.0 lbs.
Insert Carpet: 18.70” x 1.38”
Tile Size: 19.69” x 19.69”
Tiles (19.69” x 19.69” ea.): 12 tiles per box (32.5 sq. ft.)

SNAP TRAX CLIPS
Clip Material: 304 Stainless Steel
Clip Color: Black (Electro Coating)
Clip Size: 5.7” x 0.55”
Clip Thickness: 2mm
Clip Weight: 0.4kg 1. Dark Grey (Stocked)
FLAMMABILITY RATING Note: More colors available for Custom Orders, ask your rep today.

Friction (ASTM D-2047-96) Wet .60
Standard Rolling Load 1,000lbs
Fire Resistance (ASTM E648) Class 1 • Patent pending locking clip to keep grids in place in
UV Resistance Utilizes recyclable, UV resistant PVC/TPE high sheer locations.
LEED-NC Version 3 IEQ Credit 5, 4.3 | MR Credit 4, 6

Flooring Solutions For Every Environment
