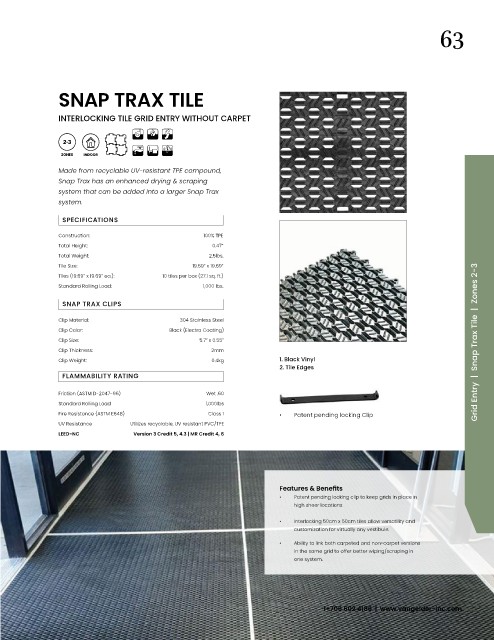

SNAP TRAX TILE

INTERLOCKING TILE GRID ENTRY WITHOUT CARPET

INDOOR
Made from recyclable UV-resistant TPE compound,
Snap Trax has an enhanced drying & scraping
system that can be added into a larger Snap Trax
system.

SPECIFICATIONS
Construction: 100% TPE
Total Height: 0.47”
Total Weight: 2.5lbs.
Tile Size: 19.69” x 19.69”
Tiles (19.69” x 19.69” ea.): 10 tiles per box (27.1 sq. ft.)
Standard Rolling Load: 1,000 lbs.

SNAP TRAX CLIPS
Clip Material: 304 Stainless Steel
Clip Color: Black (Electro Coating)
Clip Size: 5.7” x 0.55” Grid Entry | Snap Trax Tile | Zones 2-3
Clip Thickness: 2mm
Clip Weight: 0.4kg 1. Black Vinyl
2. Tile Edges
FLAMMABILITY RATING

Friction (ASTM D-2047-96) Wet .60
Standard Rolling Load 1,000lbs
Fire Resistance (ASTM E648) Class 1 • Patent pending locking Clip
UV Resistance Utilizes recyclable, UV resistant PVC/TPE
LEED-NC Version 3 Credit 5, 4.3 | MR Credit 4, 6

Features & Benefits
• Patent pending locking clip to keep grids in place in
high sheer locations
• Interlocking 50cm x 50cm tiles allow versatility and
customization for virtually any vestibule.
• Ability to link both carpeted and non-carpet versions
in the same grid to offer better wiping/scraping in
one system.

1+706 602 4186 | www.vangelder-inc.com
